Nikon D3400
Amazing Images, Always Connected
64/100
CAMERA SCORE
[mashshare shares=”false”]
Features 11
Performance 11
Durability 14
Price 17
Usability 11
Brand
Nikon
Model
D3400 (N1510)
Key Features
SENSOR 24MP APS-C CMOS
PROCESSOR Single EXPEED 4
DETECTION RANGE -1 to 19 EV
COVERAGE About 96 Percent
FOCUS POINTS 11
ISO 100 – 25,600
SPEED Up to 5 fps shooting
ACTIVE D-LIGHTING On and Off
OPERATING TEMPERATURE 32 to 104°F
DISPLAY 921,000 Dots 3.0 Inch
STORAGE 1 SD/SDHC/SDXC
BATTERY EN-EL14a (1200 Shots)
OUTPUT Full HD 1080p at 60/50/30/25/24p
CONNECTION HDMI Type C Mini, Bluetooth 4.1,
Eye-Fi, Micro USB
Camera Capabilities
Click the Links Below for Details
Photographic Foundation >
Making Creative Composition >
Framing Aesthetically >
Understanding Light >
Visualization >
Color Management >
Developing Style >
Capable Genres ▾
Close-Up Photography >
Food Photography >
Black & White Photography >
Nature Photography >
Landscape Photography >
Wildlife Photography >
Photojournalism >
Portrait Photography >
Wedding Photography >
Street Photography >
Sports Photography >
Cinematography >
How-to Use Nikon D3400
Welcome to the How-to section of the camera. In this Light & Composition University website, each page for a camera has a how-to section and a section for learning. Simply because the buttons and the controls of each camera is located in different places that not only varies for brands but in each model. How-to section help you operate your camera, however, if you are interested to learn photography, not only you need to know how your camera works, but also you must know what you can change and why you do that to get better photo. Click the “Learn” or scroll down.
Nikon D3400 Exposure Indicators
The key to the photography is light, and it’s the exposure indicators, where you see how much light your camera sensor sees. These indicators both in monitor and viewfinder show whether the photograph would be under or over-exposed at the current setting. The amount of under or overexposure is shown in increments of ⅓ EV.
Know Why and What Controls to Change, Click
Learn ⇲ or Photographic Foundation ⇲
Camera Body from the Top
Legend / Function
1. Movie-record Button
2. Power Switch
3. Shutter-release Button
4. -/+ EV Button
5. i – Info Button
6. Eyelets for Camera Strap
7. Speaker
8. Command Dial
9. Mode Dial
10. AE-L/AF-L Lock Button
11. Accessory Shoe ( for Optional Flash )
12. Focal Plane Mark
Know Why and What Controls to Change, Click
Learn ⇲ or Photographic Foundation ⇲

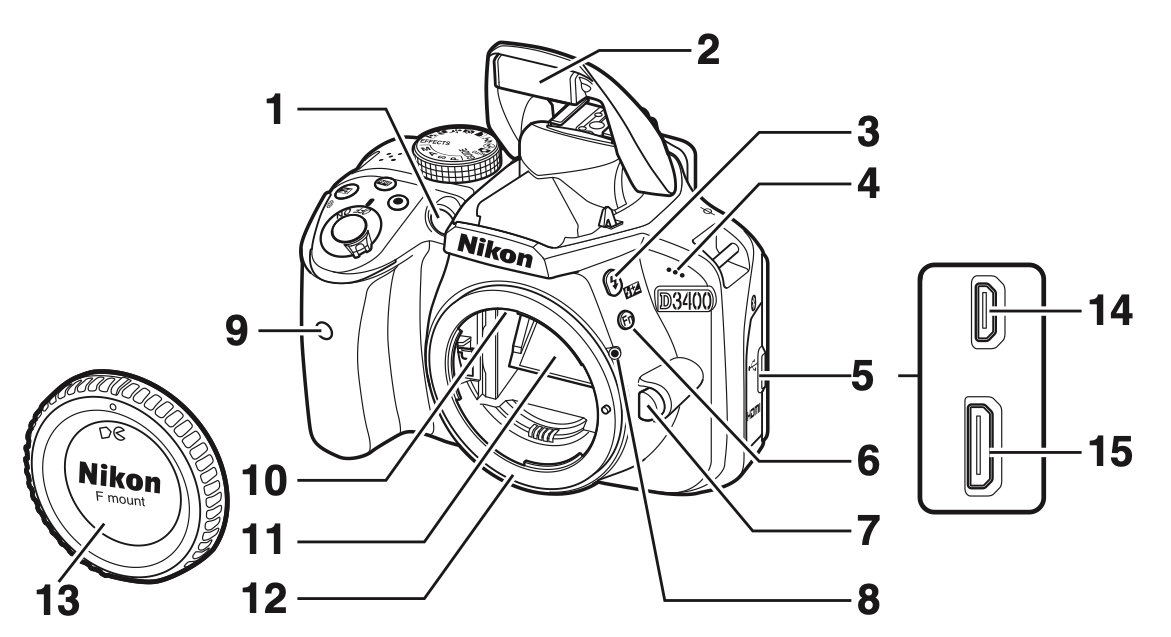

Camera Body from the Front-Right
Legend / Function
1. AF/Timer/Red-eye Illuminator
2. Built-in Flash
3. Flash Pop-up Button
4. Microphone
5. Connector Cover
6. Fn Button
7. Lens Release Button
8. Mounting Mark
9. Infrared Receiver
10. CPU Contacts
11. Mirror
12. Lens Mount
13. Body Cap
14. USB Connector
15. HDMI Connector
Know Why and What Controls to Change, Click
Learn ⇲ or Photographic Foundation ⇲

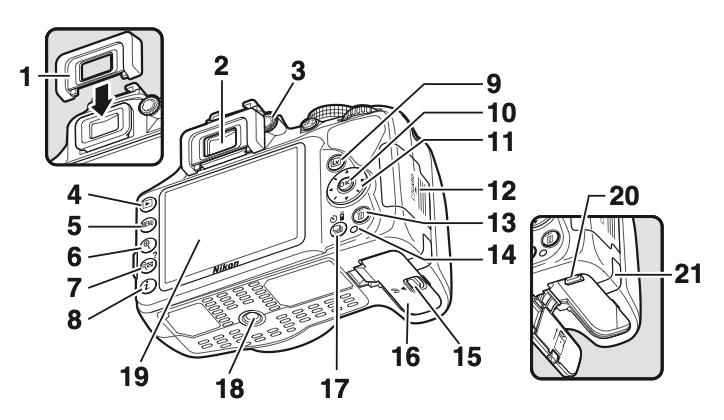

Camera Body from the Button-Back
Legend / Function
1. Rubber Eyecup
2. Viewfinder Eyepiece
3. Diopter Control
4. Play Button
5. Menu Button
6. Zoom-in Button
7. Zoom-out Button
8. i – Button
9. Live Button
10. OK Button
11. Multi Selector
12. Memory Card Slot Cover
13. Delete Button
14. Memory Card Access Lamp
15. Battery-chamber Cover Latch
16. Battery-Chamber Cover
17. Time/Remote Button
18. Tripod Socket
19. Monitor
20. Battery Latch
21. Power Connector Cover for Optional Power Connector
Learn & Master Photography with Nikon D3400
For over a decade we have been teaching photography following a university standard. No one does better than us. We have a selection of courses, diplomas, graduate and post-graduate programs as well as some of our best-selling university press publications to guide you in best possible way for your camera. Do enroll for the fundamentals and then move to the genres you want to master.
Photographic Foundation
There is a complete diploma program for learning the fundamentals of photography, creative composition, and aesthetic framing. If you want to enroll into them separately, there are 5 amazing courses. This diploma and these courses will set a strong foundation for the field of photography.
Fundamentals to Next Level
Understanding Light, Visualization, Color and Color Management, Developing Style, and Mastering the Decisive Moments are the 5 key courses that take your understating from fundamentals to next level.
*We strongly recommended you to enroll into them in sequence just after completing the foundation courses.
(c) Light & Composition
Capability with Basic
Photographic Genres
Exploring Perception and Harness Your Artistic Potential for close-up photography, Into the World of Photojournalism, Mastering the Art of Food Photography, Mastering the Art of Food Styling, Mastering the Art of Nature Photography, Mastering the Art of Wildlife Photography, and Mastering the Art of Landscape Photography are some of our most popular courses for the basic genres of photography that this camera is fully capable of. Enroll into them to learn how you can use your camera for each genre.
Capability with Advanced
Photographic Genres
Mastering the Art of Portrait Photography, Mastering the Art of Black & White Photography, Mastering the Art of Advertising Photography, Mastering the Art of Street Photography, Mastering Professional Sports Photography, Photography Mastering the Art of Cinematography, and Mastering Professional Wedding Photography are some of our most popular courses for the advanced genres of photography that this camera is fully capable of. Enroll into them to learn how you can use your camera for each genre.
(s) Light & Composition
(c) Light & Composition University
(c) Light & Composition University
(c) Light & Composition University
(c) Light & Composition University
Nikon D3400 Technical Specification
| Announced | 17th August, 2016 |
| Dimensions | 124 mm x 98 mm x 75.5 mm |
| Weight | 395 g |
| Sensor | Effective Pixels (Megapixels): 24.2 million Sensor Size: 23.5 mm x 15.6 mm Image Sensor Format: DX Image Sensor Type: CMOS Total Pixels: 24.7 million |
| ISO | Auto ISO 100 – 25,600 |
| Exposure Compensation | ±5 EV in increments of 1/3 EV in P, S, A, M, Scene, and Night Vision modes |
| Shutter | Shutter priority Mode: Available Min. shutter speed: 30 sec Max. shutter speed: 1/4000 sec. |
| Lens Mount | Nikon F |
| Focus Points | 11 |
| Coverage | 96% |
| Battery Life | EN-EL14a 1200 Shots |
| Output Image Format | DX-format (L) 6,000 x 4,000 (M) 4,496 x 3,000 (S) 2,992 x 2,000 |
| Output Video Format | Full HD 1,920×1,080 / 60 fps Full HD 1,920×1,080 / 50 fps Full HD 1,920×1,080 / 30 fps Full HD 1,920×1,080 / 25 fps Full HD 1,920×1,080 / 24 fps HD 1,280×720 / 60 fps HD 1,280×720 / 50 fps |
